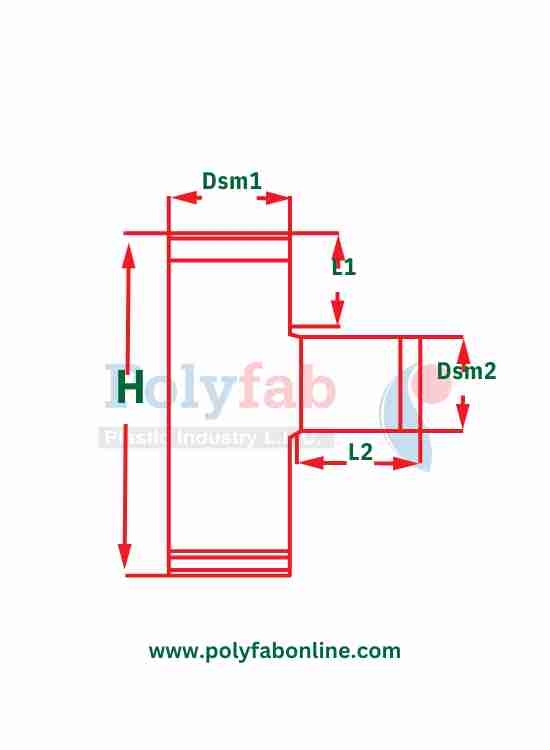

| Diameter (Dn) | Dsm | H | L |
| 36mm (1 1/4") | 36.60 | 106.50 | 24 |
| 43mm (1 1/2") | 43.30 | 113.10 | 28 |
| 50mm(2") | 50.30 | 125.00 | 31 |
| 56mm(2") | 56.30 | 131.80 | 31 |
| 75mm(3") | 75.50 | 180.00 | 41 |
| 82mm(3") | 82.50 | 189.00 | 45 |
| 110mm(4") | 110.70 | 241.00 | 50 |
| 160mm(6") | 160.90 | 265.00 | 58 |
|
200mm(8") |
201.10 | 320.00 | 60 |
